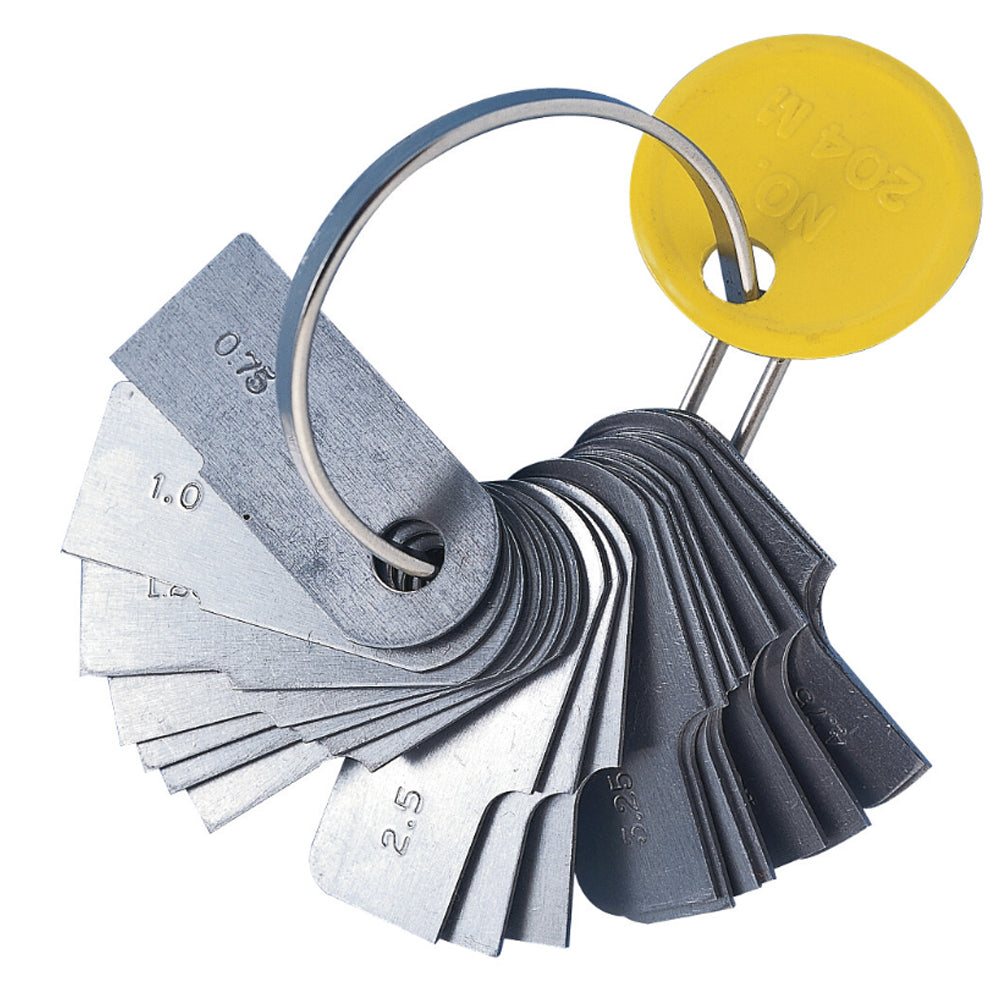

The Moore & Wright Traditional Radius Gauges are precision inspection tools designed for checking both internal and external radii. Manufactured with accurately milled steel blades, these gauges provide a practical solution for workshop inspection, toolroom use, engineering, manufacturing and quality control applications.
Each blade is marked with its nominal size for quick identification, helping users select the correct radius during inspection tasks. The gauges are available in both metric and imperial formats, with options mounted either on a ring or housed in a steel sleeve depending on user preference and application requirements.
Suitable for checking curves, corners, profiles and machined features, Moore & Wright radius gauges are ideal for engineers, machinists, inspectors and maintenance teams requiring a simple and dependable manual radius checking tool.
| Product Code | Measurement System | Description | Range | No. of Blades | Graduation |
|---|---|---|---|---|---|
| 204M | Metric | Ring | 0.75-5mm | 18 | 0.25mm |
| 206M | Metric | Sleeve | 0.75-5mm | 18 | 0.25mm |
| 204MA | Metric | Ring | 5.5-13mm | 16 | 0.5mm |
| 206MA | Metric | Sleeve | 5.5-13mm | 16 | 0.5mm |
| 204 | Imperial | Ring | 1/32-17/64" | 16 | 1/64" |
| 206 | Imperial | Sleeve | 1/32-17/64" | 16 | 1/64" |
| 204A | Imperial | Ring | 9/32-33/64" | 16 | 1/64" |
| 206A | Imperial | Sleeve | 9/32-33/64" | 16 | 1/64" |
| Specification | Details |
|---|---|
| Product Type | Traditional Radius Gauge Set |
| Measurement Systems | Metric & Imperial |
| Blade Type | Accurately Milled Steel Blades |
| Radius Checking | Internal & External Radii |
| Blade Marking | Each Blade Marked with Nominal Size |
| Mounting Options | Mounted on Ring or in Steel Sleeve |
| Application | Checking Curves, Corners, Profiles & Machined Radii |
Moore & Wright Traditional Radius Gauges provide a straightforward and reliable way to inspect internal and external radii across a range of engineering and workshop applications. With metric and imperial options available, they are a useful addition to any inspection, machining or quality control toolkit.
