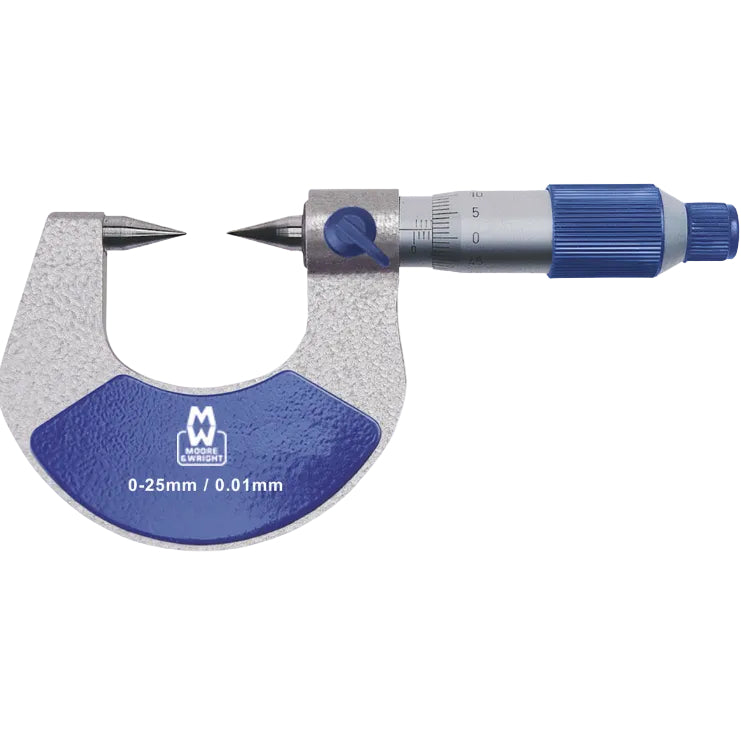

The Moore & Wright 270 Series Point Micrometers are precision measuring instruments designed for accurate measurement of small grooves, drill web thicknesses, keyways and other difficult-to-access features in engineering, manufacturing and inspection environments. Featuring specially designed pointed spindles and anvils, these micrometers allow precise contact with narrow surfaces and recessed areas that cannot easily be measured using conventional flat-anvil micrometers.
Available with 15° or 30° measuring points, the Moore & Wright Point Micrometers provide versatility for a range of specialist external measurement applications. The pointed measuring faces are particularly suited to checking drill web thickness, narrow slots, keyways and small grooves, making these instruments ideal for precision machining, toolmaking, manufacturing and quality control applications.
With measuring ranges from 0–25mm up to 75–100mm and a consistent resolution of 0.01mm, the Moore & Wright 270 Series offers engineers and inspectors a practical solution for accurate dimensional measurement of complex components and hard-to-reach features.
| Product Code | Range (mm) | Point Angle | Resolution (mm) |
|---|---|---|---|
| MW270-03 | 50–75 | 15° | 0.01 |
| MW270-04 | 75–100 | 15° | 0.01 |
| MW270-05 | 0–25 | 30° | 0.01 |
| MW270-06 | 25–50 | 30° | 0.01 |
| MW270-07 | 50–75 | 30° | 0.01 |
| MW270-08 | 75–100 | 30° | 0.01 |
| Specification | Details |
|---|---|
| Product Type | Point Micrometer |
| Series | 270 Series |
| Measurement System | Metric |
| Measuring Range | 0–25mm to 75–100mm |
| Metric Resolution | 0.01mm |
| Point Angles | 15° or 30° |
| Anvil & Spindle Type | Pointed Spindle & Anvil |
| Measurement Functions | Drill Web Thickness, Small Grooves, Keyways & Recessed Features |
| Applications | Precision Engineering, Toolmaking, Machining, Manufacturing, Inspection & Quality Control |
The Moore & Wright 270 Series Point Micrometers provide accurate measurement of narrow grooves, drill webs and other difficult-to-access features. Their specialised pointed measuring faces, choice of 15° or 30° point angles and fine 0.01mm resolution make them a practical choice for precision engineering, toolmaking and inspection applications.
