The Moore & Wright DFC Series Fractional Reading Calipers are versatile precision measuring instruments designed to provide measurements in metric, decimal inch and fractional inch formats. Ideal for engineering workshops, fabrication, maintenance and general manufacturing, these calipers eliminate the need for manual conversion when working between measurement systems.

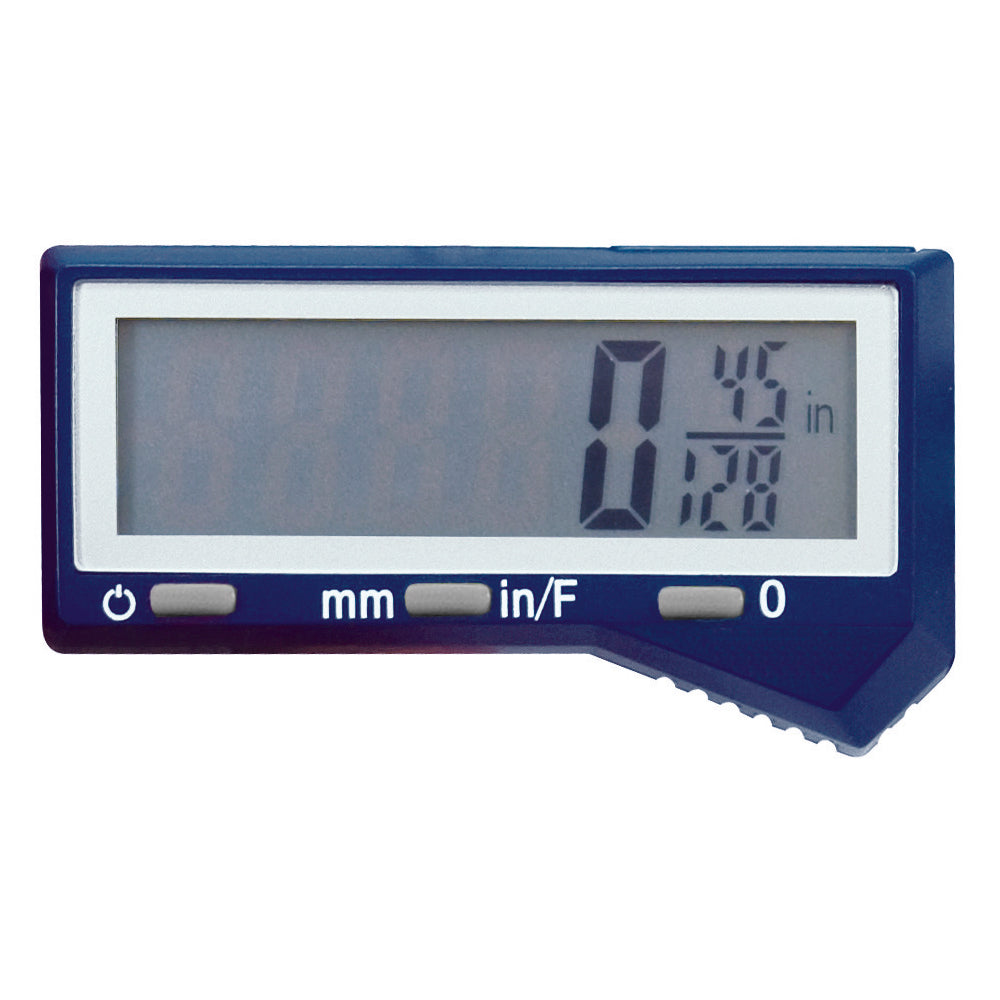

Manufactured from hardened stainless steel, the DFC Series combines durability with precision performance for everyday workshop use. The clear digital display provides fast, accurate readings with the ability to switch between millimetres, decimal inches and fractional inch measurements, making the calipers particularly useful where mixed measurement standards are encountered.
Suitable for measuring external, internal, depth and step dimensions, the Moore & Wright DFC Series offers dependable performance across a wide range of industrial applications. Available in three measuring capacities, users can select the model best suited to their requirements.
| Product Code | Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Jaw Length |
|---|---|---|---|---|---|---|
| MW110-15DFC | 0-150 | 0-6 | 0.03 | 0.01 | 0.0005 / 1/128" | 40mm |
| MW110-20DFC | 0-200 | 0-8 | 0.03 | 0.01 | 0.0005 / 1/128" | 50mm |
| MW110-30DFC | 0-300 | 0-12 | 0.03 | 0.01 | 0.0005 / 1/128" | 60mm |
| Specification | Details |
|---|---|
| Series | 110 DFC |
| Product Type | Fractional Reading Caliper |
| Measuring Range | 0-150mm to 0-300mm (0-6" to 0-12") |
| Metric Resolution | 0.01mm |
| Imperial Resolution | 0.0005" |
| Fractional Resolution | 1/128" |
| Accuracy | ±0.03mm |
| Material | Hardened Stainless Steel |
| Display | Digital LCD |
| Measurement Functions | External, Internal, Step & Depth Measurement |
The Moore & Wright DFC Series Fractional Reading Calipers are an excellent choice for engineers and technicians who regularly work with both metric and imperial drawings. Their ability to display fractional inch measurements alongside decimal inch and metric values provides greater flexibility, reduces conversion errors and improves efficiency in workshop and inspection environments.
