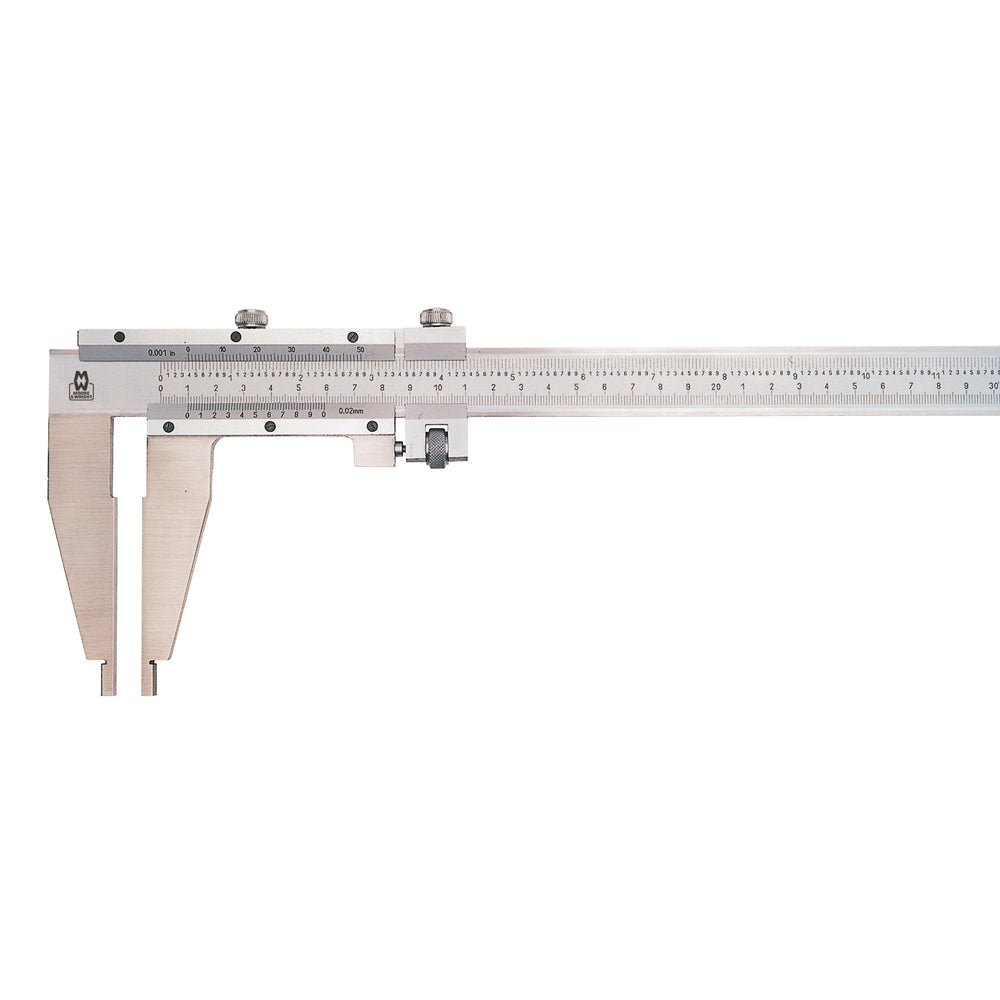

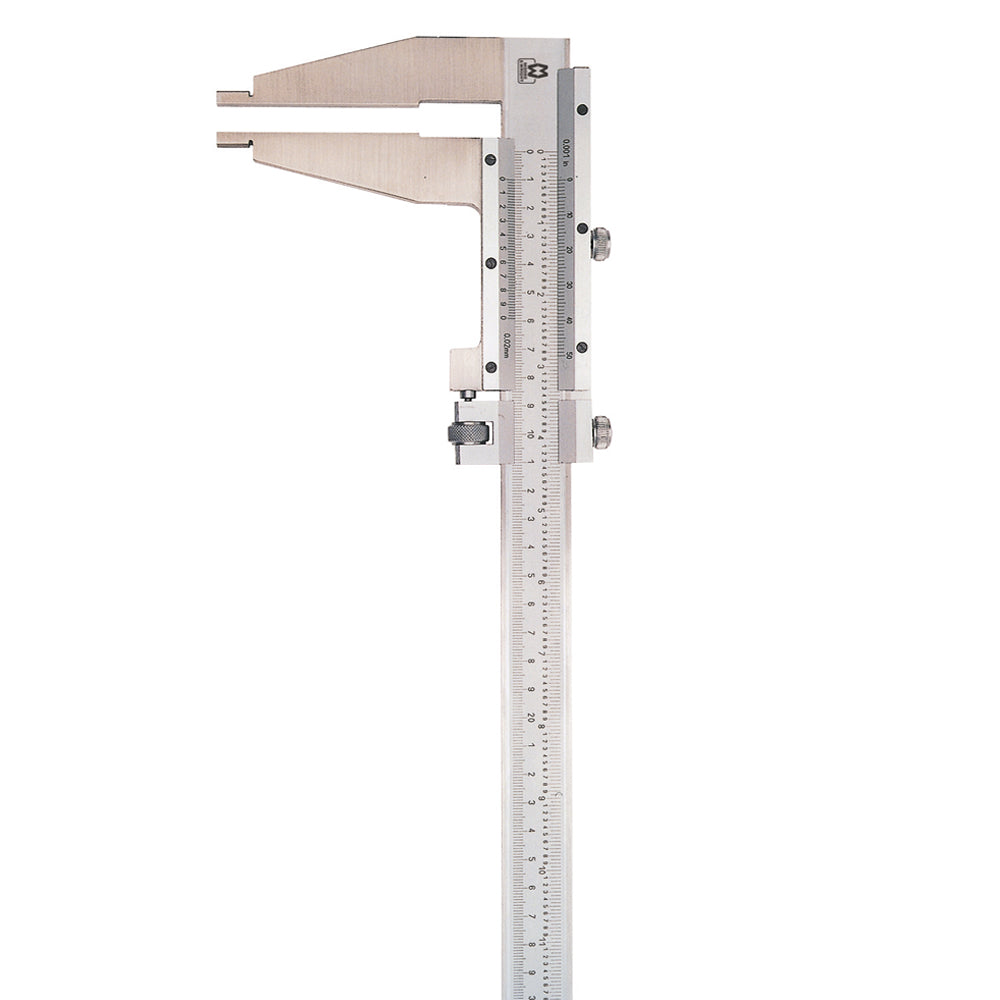

The Moore & Wright Large Workshop Vernier Calipers are designed for accurate measurement of large workpieces in engineering, manufacturing, fabrication and inspection environments. Manufactured from hardened stainless steel, these robust calipers provide precise measurement of external, internal, depth and step dimensions whilst maintaining excellent accuracy across extended measuring ranges.
Featuring precision engraved metric and imperial scales, the calipers deliver smooth operation and dependable manual measurement without the need for batteries. Their heavy-duty construction makes them ideally suited to machine shops, fabrication facilities, quality control departments and maintenance workshops where large component measurement is required.
Available in measuring capacities from 500mm up to 1500mm, the Moore & Wright Large Workshop Vernier Calipers provide engineers and inspectors with reliable precision for measuring large components, fabricated assemblies and machined parts.

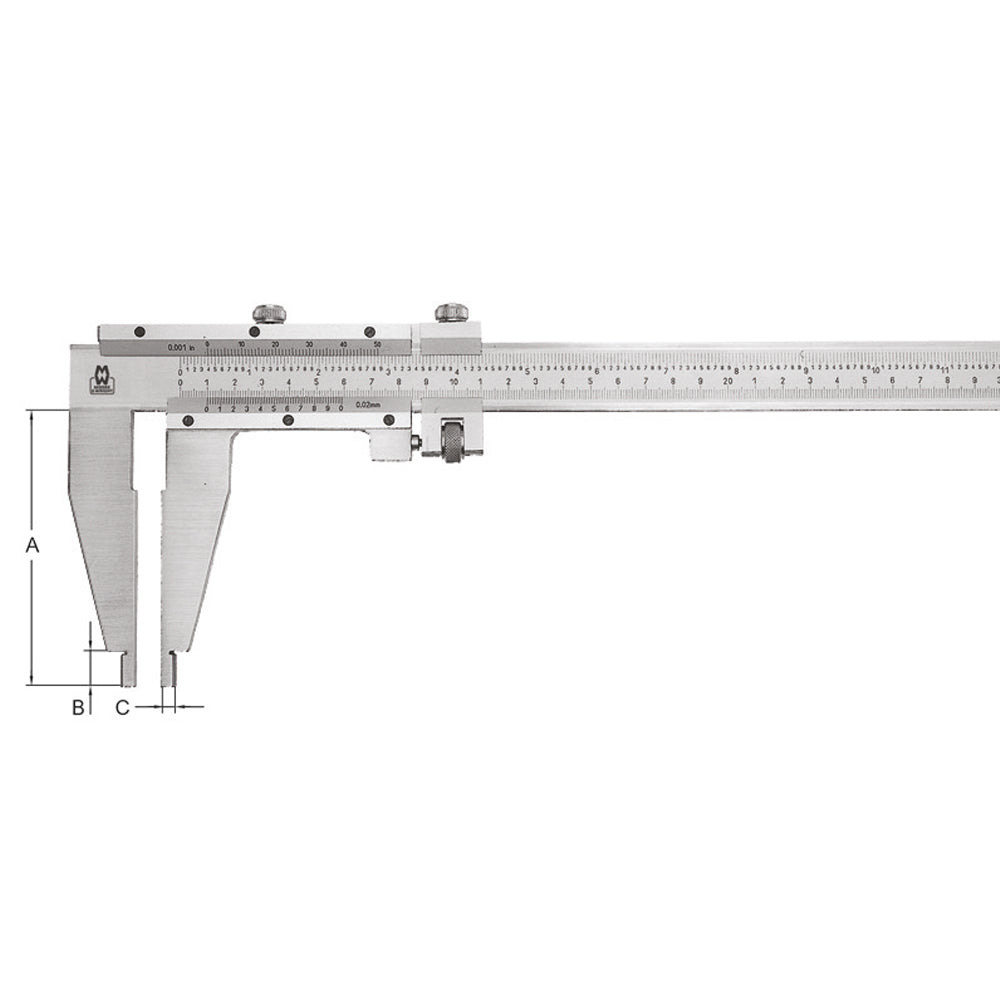

| Product Code | Range (mm) | Range (inch) | Accuracy (mm) | Resolution (mm) | Resolution (inch) | Jaw Length (A) | Jaw Thickness (B) | Nib Width (C) |
|---|---|---|---|---|---|---|---|---|
| MW150-52 | 0-500 | 0-20 | ±0.05 | 0.02 | 0.001 | 100mm | 12mm | 5mm |
| MW150-55 | 0-500 | 0-20 | ±0.07 | 0.05 | 1/128 | 100mm | 12mm | 5mm |
| MW150-62 | 0-600 | 0-24 | ±0.05 | 0.02 | 0.001 | 100mm | 12mm | 5mm |
| MW150-65 | 0-600 | 0-24 | ±0.08 | 0.05 | 1/128 | 100mm | 12mm | 5mm |
| MW150-72 | 0-1000 | 0-40 | ±0.07 | 0.02 | 0.001 | 125mm | 18mm | 10mm |
| MW150-75 | 0-1000 | 0-40 | ±0.10 | 0.05 | 1/128 | 125mm | 18mm | 10mm |
| MW150-82 | 0-1500 | 0-60 | ±0.11 | 0.02 | 0.001 | 150mm | 18mm | 10mm |
| Specification | Details |
|---|---|
| Product Type | Large Workshop Vernier Caliper |
| Measurement System | Metric & Imperial |
| Measuring Range | 500mm to 1500mm (20" to 60") |
| Metric Resolution | 0.02mm or 0.05mm |
| Imperial Resolution | 0.001" or 1/128" |
| Construction | Hardened Stainless Steel |
| Measurement Functions | External, Internal, Depth & Step Measurement |
| Applications | Large Component Measurement, Fabrication, Engineering, Inspection & Quality Control |
The Moore & Wright Large Workshop Vernier Calipers provide dependable precision when measuring large workpieces that exceed the capacity of standard calipers. Their robust construction, clear dual-scale graduations and excellent measuring accuracy make them ideal for heavy engineering, fabrication workshops and inspection departments.
