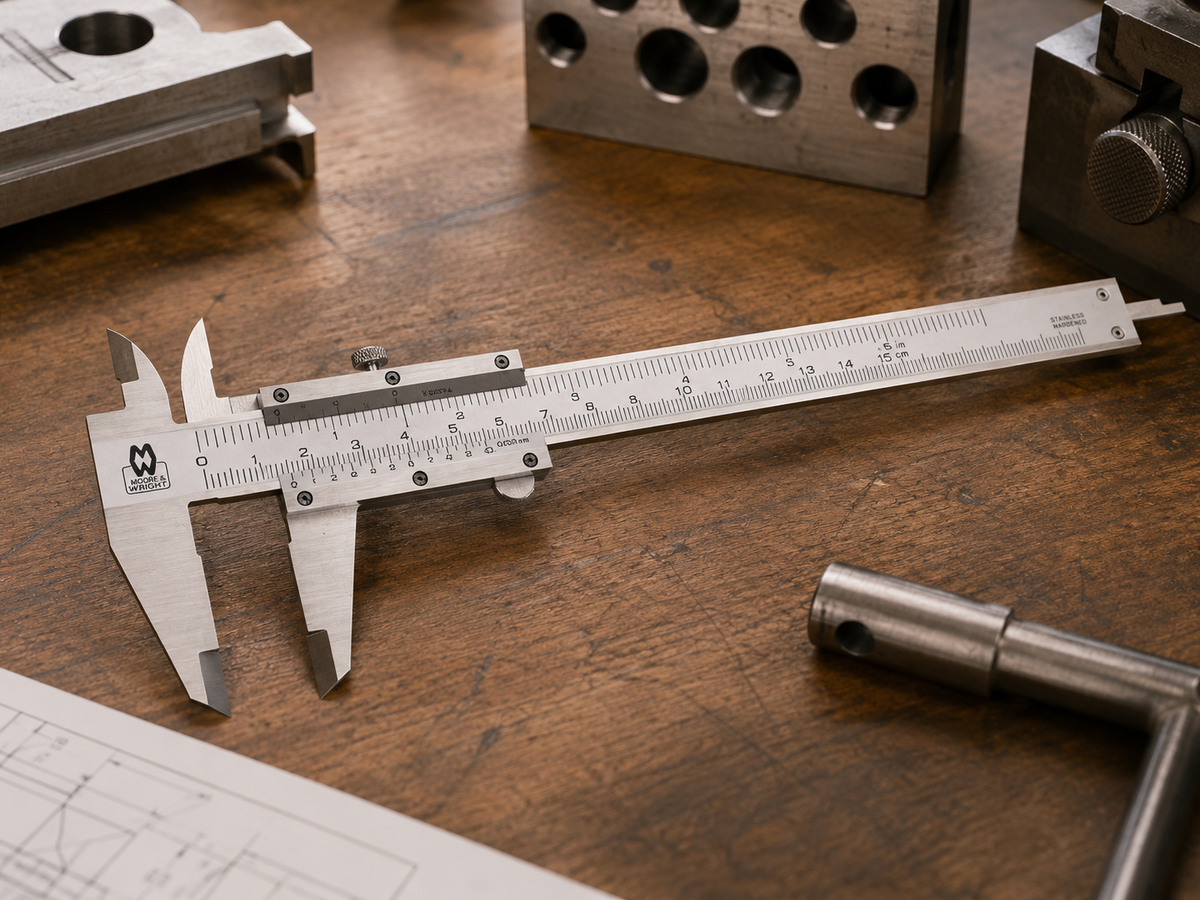

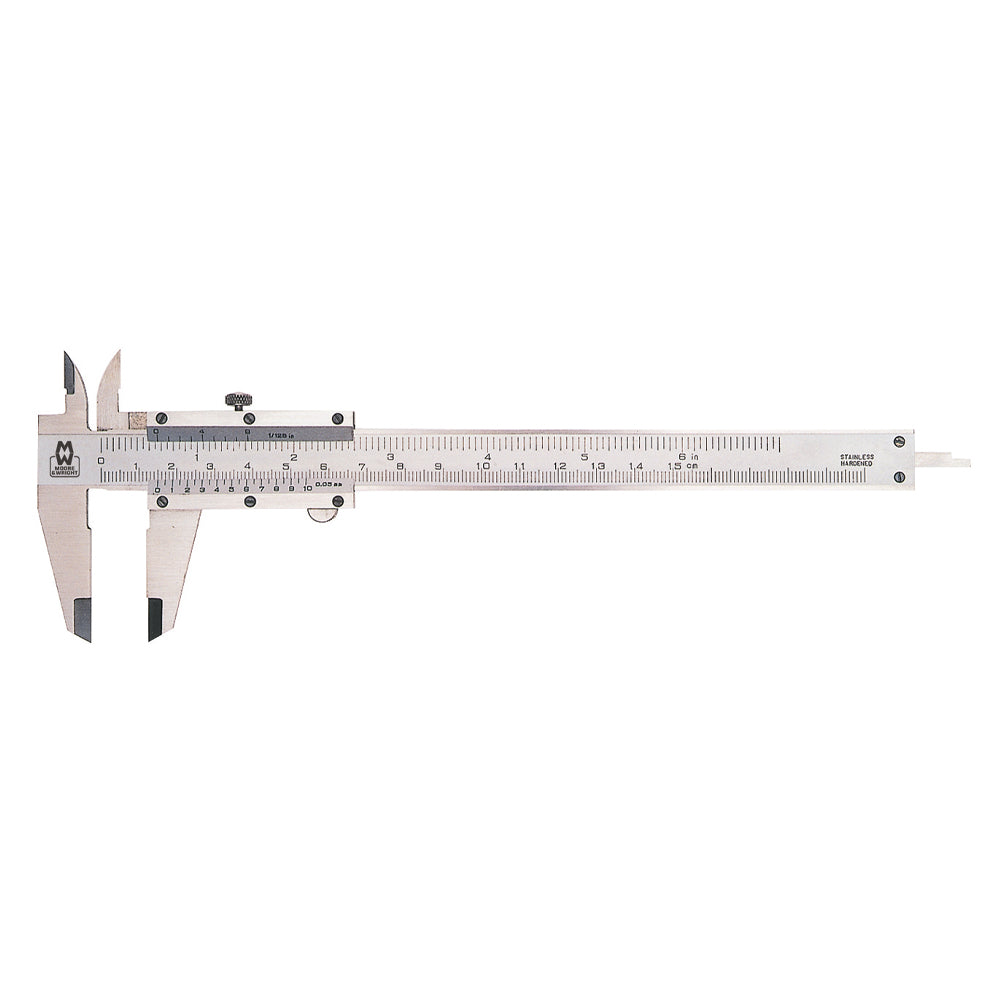

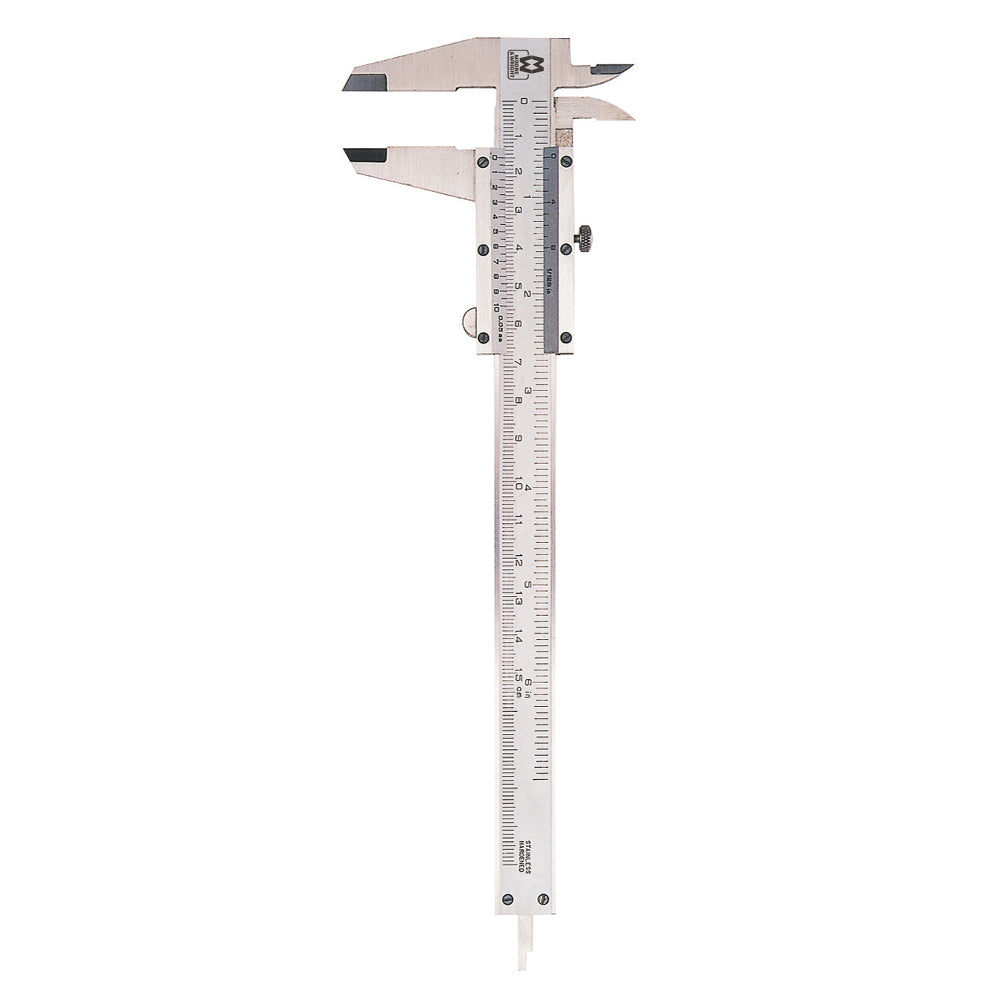

The Moore & Wright Workshop Vernier Caliper 100 Series is a robust and reliable measuring instrument designed for everyday workshop, manufacturing and inspection applications. Manufactured from hardened alloyed stainless steel and produced to DIN 862 standards, these calipers provide accurate and repeatable measurements for professional engineers and machinists.
Featuring 4-way measurement capability, the 100 Series can perform external, internal, depth and step measurements using a single instrument. The chromed scale with engraved graduations provides excellent readability, whilst the micro-lapped measuring faces help ensure accurate measurement results throughout the life of the tool.
Available in a range of measuring capacities and resolutions, the Moore & Wright 100 Series offers an economical workshop solution without compromising on quality or performance. Each caliper is supplied in a protective plastic storage case.

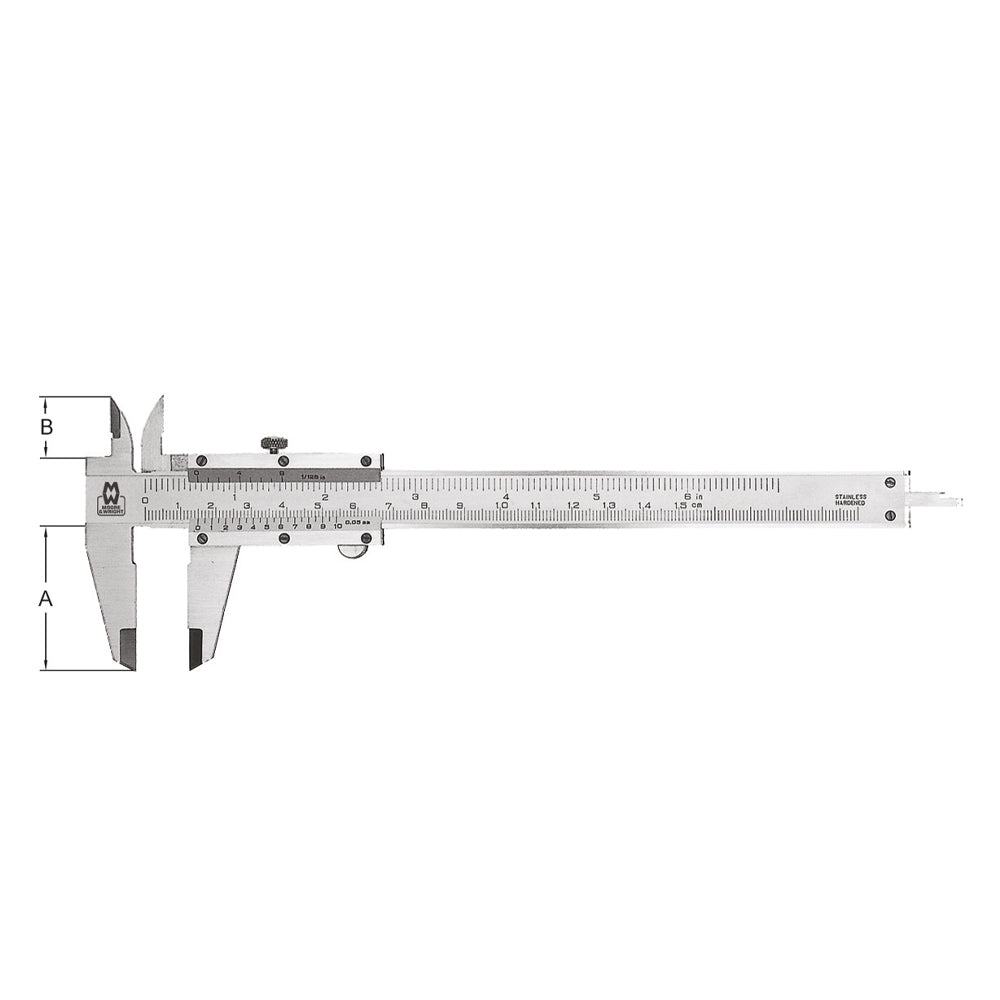

| Product Code | Range | Resolution (mm) | Resolution (inch) | Jaw Length A (mm) | Jaw Length B (mm) |
|---|---|---|---|---|---|
| MW100-15B | 0-150mm / 0-6in | 0.05mm | 1/128in | 40 | 16 |
| MW100-20B | 0-200mm / 0-8in | 0.05mm | 1/128in | 50 | 20 |
| MW100-30B | 0-300mm / 0-12in | 0.05mm | 1/128in | 55 | 20 |
| MW100-15BI | 0-150mm / 0-6in | 0.02mm | 0.001in | 40 | 16 |
| MW100-20BI | 0-200mm / 0-8in | 0.02mm | 0.001in | 50 | 20 |
| MW100-30BI | 0-300mm / 0-12in | 0.02mm | 0.001in | 55 | 20 |
| Specification | Details |
|---|---|
| Product Type | Workshop Vernier Caliper |
| Series | 100 Series |
| Standard | DIN 862 |
| Measurement Capability | 4-Way Measurement |
| Material | Hardened Alloyed Stainless Steel |
| Scale Type | Chromed Scale with Engraved Graduations |
| Measuring Faces | Micro-Lapped |
| Locking Mechanism | Locking Screw |
| Supplied In | Plastic Storage Case |
| Applications | External, Internal, Step & Depth Measurement |
The Moore & Wright Workshop Vernier Caliper 100 Series combines durability, versatility and measurement accuracy in a practical workshop instrument. With multiple measuring ranges and resolution options available, the range is suitable for general engineering, manufacturing, inspection and maintenance applications.
