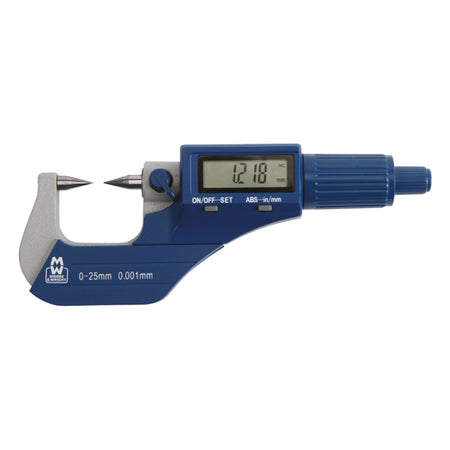

The Moore & Wright 270 Series Workshop Digital Point Micrometer is designed for precision measurement of grooves, recesses, narrow slots and other difficult-to-access features where a conventional micrometer cannot be used. Its hardened 30° pointed measuring faces provide accurate contact with small features, making it ideal for engineering, toolmaking and inspection applications.
Featuring a clear digital LCD display with metric and imperial measurement capability, the micrometer delivers fast, accurate readings with a resolution of 0.001mm (0.00005"). Manufactured to the high standards expected from Moore & Wright, it provides reliable performance for workshop and quality control environments.
The 270 Series Digital Point Micrometer is an excellent choice for precision engineers and inspectors requiring accurate measurement of grooves, keyways and other restricted features.
| Product Code | Range (mm) | Range (inch) | Accuracy (mm) | Resolution | Point Angle |
|---|---|---|---|---|---|
| MW270-01DDL | 0–25 | 0–1" | 0.004 | 0.001mm / 0.00005" | 30° |
| MW270-02DDL | 25–50 | 1–2" | 0.004 | 0.001mm / 0.00005" | 30° |
| Specification | Details |
|---|---|
| Series | 270 |
| Product Type | Workshop Digital Point Micrometer |
| Measuring Range | 0–50mm (Model Dependent) |
| Resolution | 0.001mm / 0.00005" |
| Accuracy | 0.004mm |
| Point Angle | 30° |
| Display | Digital LCD |
| Measurement System | Metric & Imperial |
| Applications | Groove Measurement, Keyways, Narrow Recesses, Precision Engineering, Toolmaking, Inspection & Quality Control |
The Moore & Wright 270 Series Workshop Digital Point Micrometer combines precision digital measurement with specialised 30° pointed anvils, allowing accurate inspection of grooves and narrow features that standard micrometers cannot reach. It is an essential measuring instrument for professional engineering and manufacturing environments.
