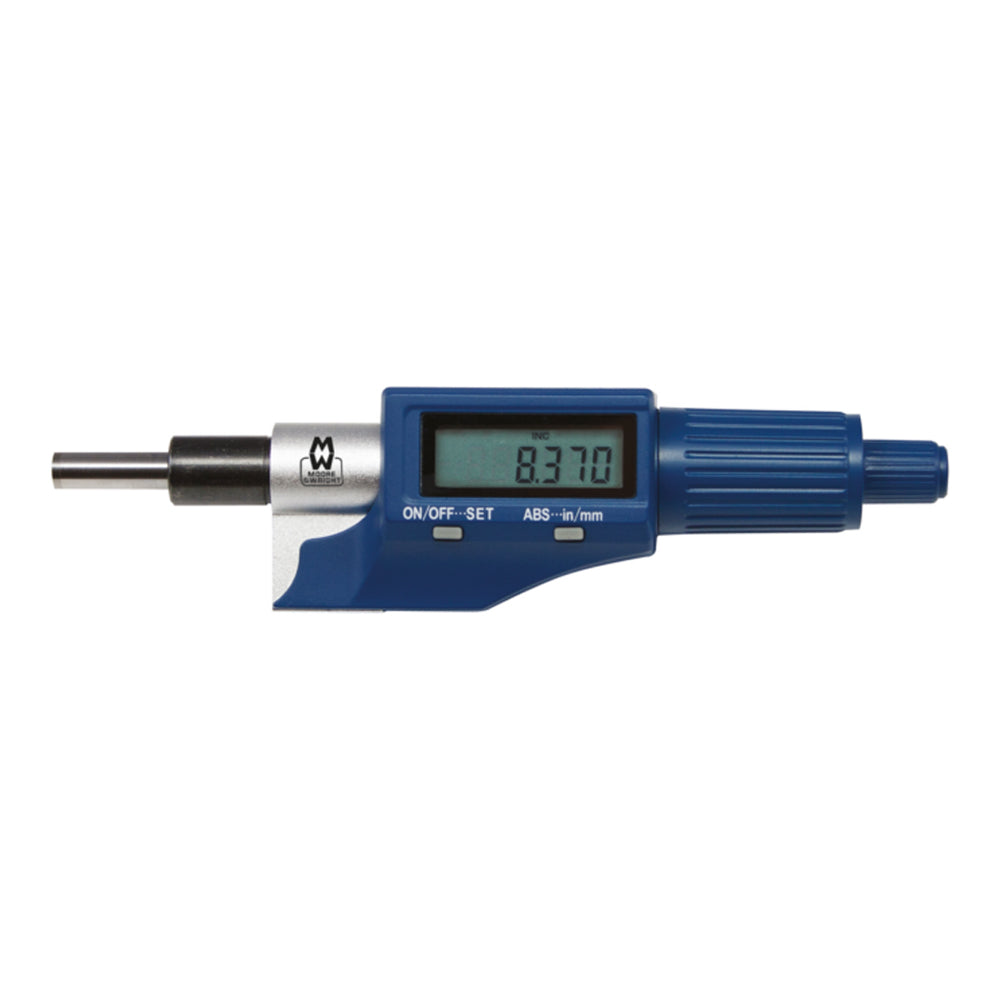

The Moore & Wright Digital Micrometer Head 312 Series is a high-precision measuring component designed for OEM equipment, bespoke measuring fixtures, laboratory instruments and specialist engineering applications. Featuring a clear digital display and ultra-fine resolution, it provides accurate linear positioning where precision adjustment is essential.
Manufactured to the high standards expected from Moore & Wright, the digital micrometer head offers a smooth spindle movement over a 0–25mm measuring range with a resolution of 0.001mm (0.00005"). Its compact design makes it ideal for integration into custom gauges, machine tooling and inspection equipment.
Suitable for professional engineering, manufacturing and metrology applications, the Digital Micrometer Head 312 Series delivers reliable, repeatable measurements for precision positioning tasks.
| Product Code | Range (mm) | Range (inch) | Resolution (mm) | Resolution (inch) |
|---|---|---|---|---|
| MW312-25D | 0–25 | 0–1" | 0.001 | 0.00005" |
| Specification | Details |
|---|---|
| Product Type | Digital Micrometer Head |
| Series | 312 |
| Product Code | MW312-25D |
| Measuring Range | 0–25mm (0–1") |
| Resolution | 0.001mm / 0.00005" |
| Display | Digital LCD Display |

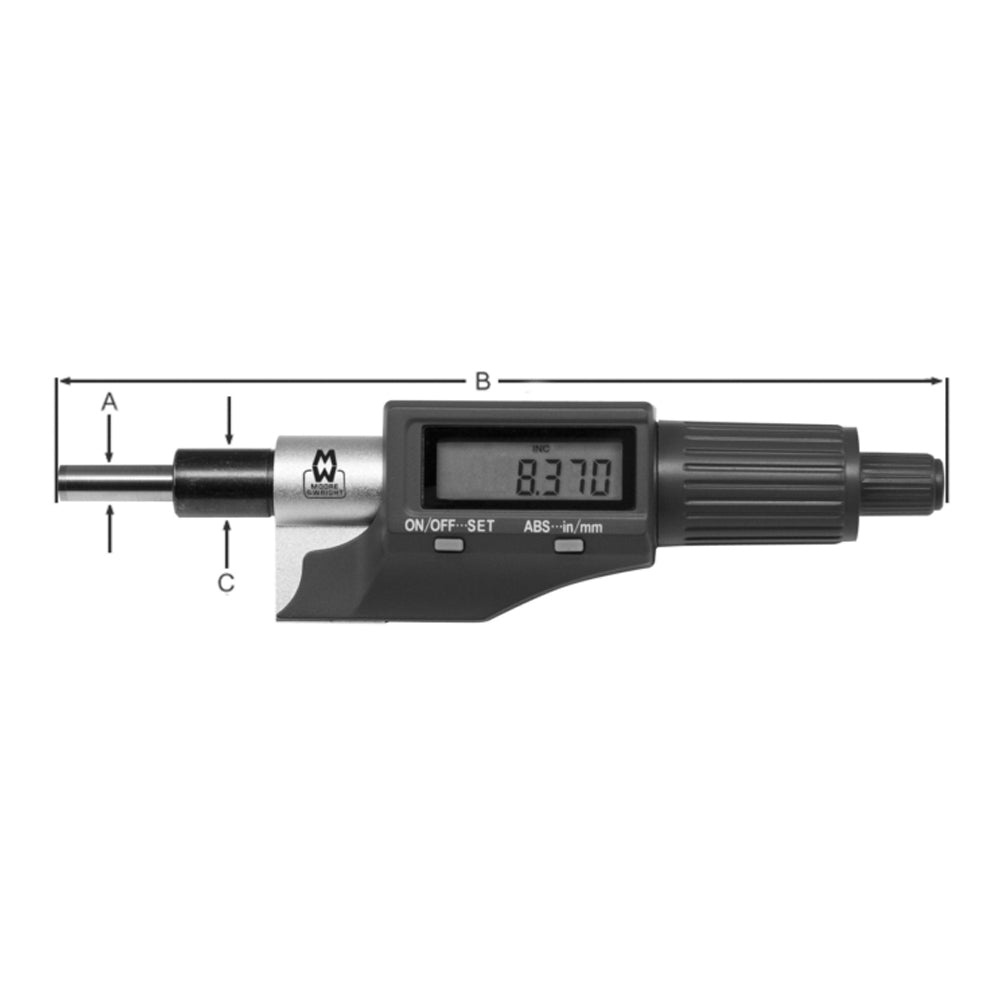

| Dimensions | Dimension A: 6.5mm Dimension B: 150mm Dimension C: 12mm |
| Applications | OEM Equipment, Precision Fixtures, Custom Measuring Systems, Laboratory Equipment, Machine Building, Tooling & Quality Control |
The Moore & Wright Digital Micrometer Head 312 Series combines digital precision with robust engineering, making it an ideal choice for manufacturers and engineers requiring highly accurate linear adjustment within specialist measuring and positioning equipment.
