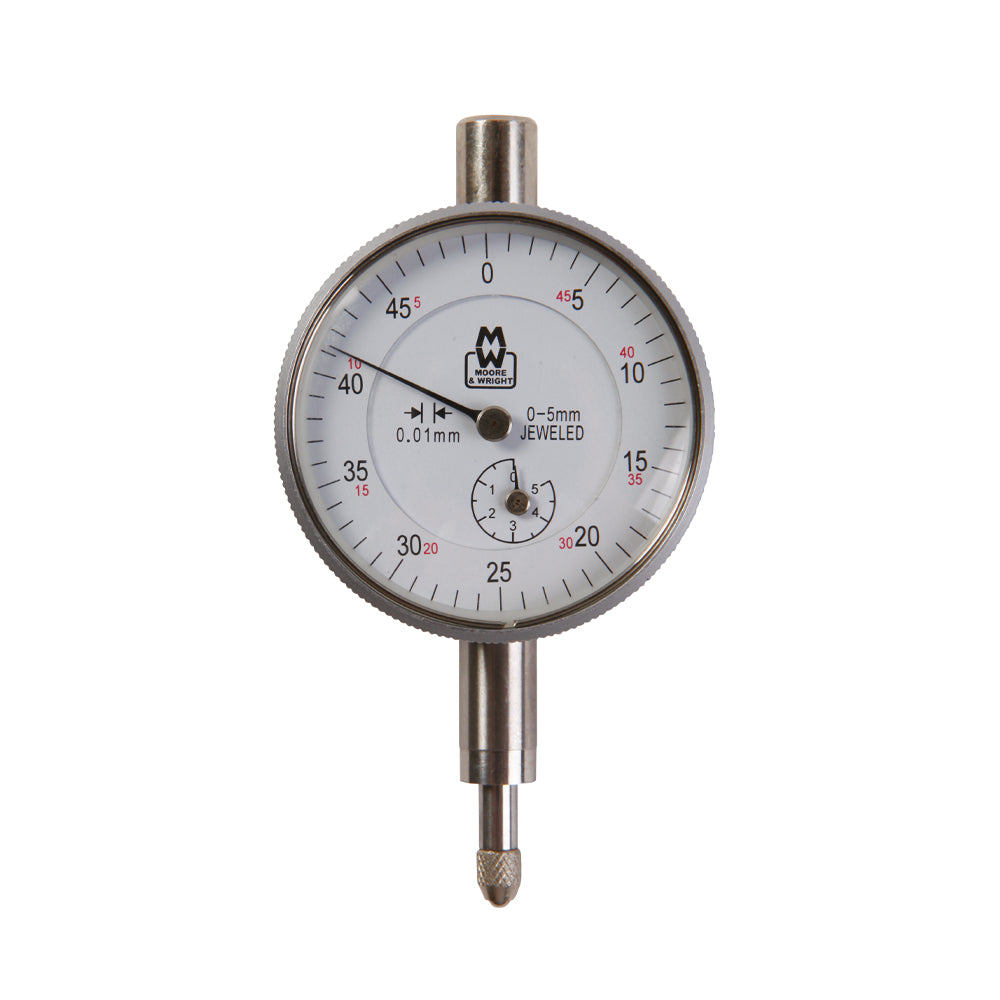

The Moore & Wright 400 Series Dial Indicators are precision measuring instruments designed for accurately detecting small linear movements and dimensional variations during inspection, setup and quality control operations. Available in a variety of measuring ranges and mounting configurations, the 400 Series provides a dependable solution for engineers, machinists and inspectors requiring reliable comparative measurement.
Manufactured to the high standards expected from Moore & Wright, these dial indicators feature clear analogue displays, robust construction and smooth operating mechanisms for repeatable measurement performance. The range includes flat back, lug back and waterproof IP54 models, allowing users to select the most suitable indicator for their application.
Suitable for checking runout, alignment, flatness, concentricity and dimensional variation, the Moore & Wright 400 Series is widely used throughout engineering workshops, machine shops, inspection departments and manufacturing facilities.
| Product Code | Description | Range (mm) | Accuracy (mm) | Resolution (mm) | Dial Diameter |
|---|---|---|---|---|---|
| MW400-01 | Flat Back | 0-1 | ±0.004 | 0.001 | 58mm |
| MW400-02 | Lug Back | 0-1 | ±0.004 | 0.001 | 58mm |
| MW400-03 | Lug Back & Flat Back | 0-3 | ±0.012 | 0.01 | 42mm |
| MW400-04 | Lug Back | 0-5 | ±0.014 | 0.01 | 42mm |
| MW400-05 | Flat Back | 0-10 | ±0.016 | 0.01 | 58mm |
| MW400-06 | Lug Back | 0-10 | ±0.016 | 0.01 | 58mm |
| MW400-06B | Waterproof (IP54) | 0-10 | ±0.02 | 0.01 | 54mm |
| MW400-08 | Lug Back | 0-30 | ±0.035 | 0.01 | 58mm |
| MW400-09 | Lug Back | 0-50 | ±0.04 | 0.01 | 58mm |
| Specification | Details |
|---|---|
| Series | 400 |
| Measuring Range | 0-1mm to 0-50mm |
| Resolution | 0.001mm & 0.01mm |
| Dial Diameter | 42mm, 54mm & 58mm |
| Mounting Options | Flat Back, Lug Back & Combination |
| Protection Rating | IP54 Available |
The Moore & Wright 400 Series offers a comprehensive selection of dial indicators suitable for precision inspection, alignment, machine setup and quality control applications. With a choice of ranges, mounting styles and protection levels, the range provides a solution for virtually every workshop and inspection requirement.
