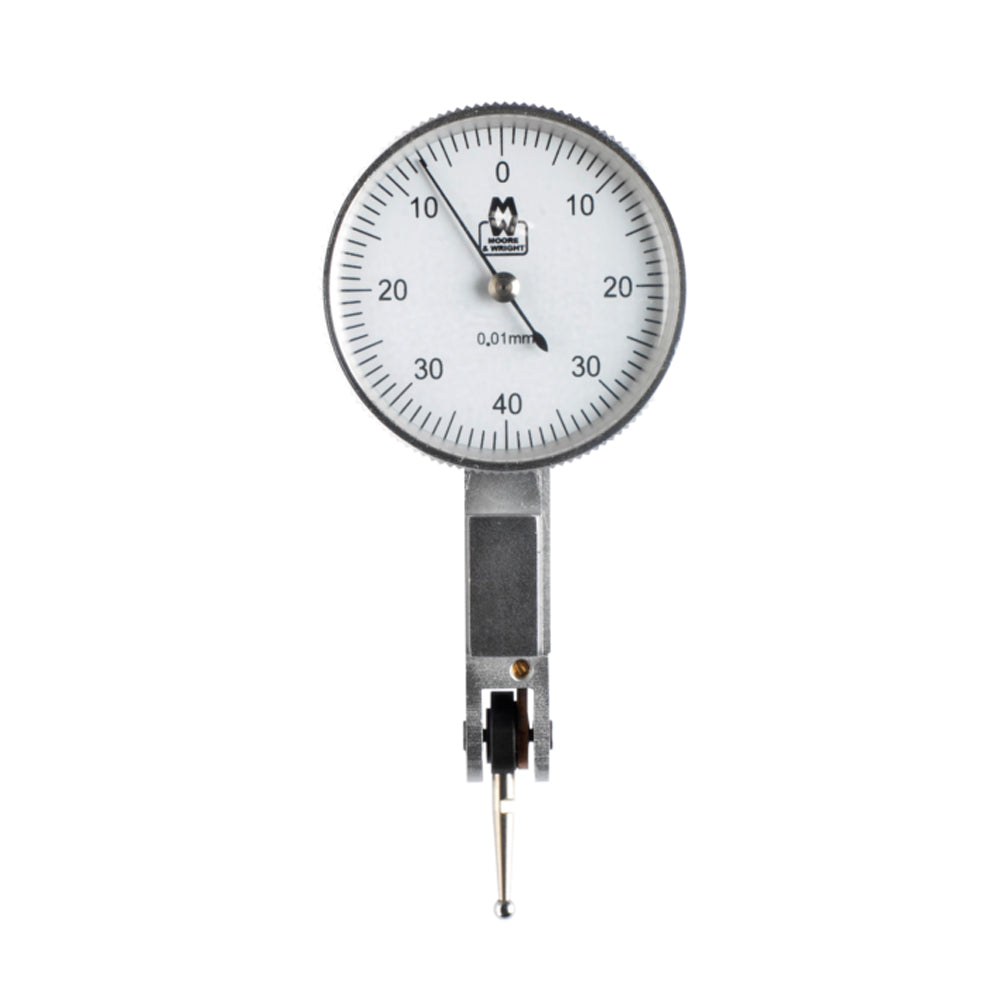

The Moore & Wright Dial Test Indicator 420 Series is a precision inspection instrument designed for alignment, runout measurement, comparative gauging and precision engineering applications. Manufactured to ANSI B89.1.10 and DIN 2270 standards, the 420 Series delivers reliable and repeatable measurement performance in workshop, inspection and quality control environments.

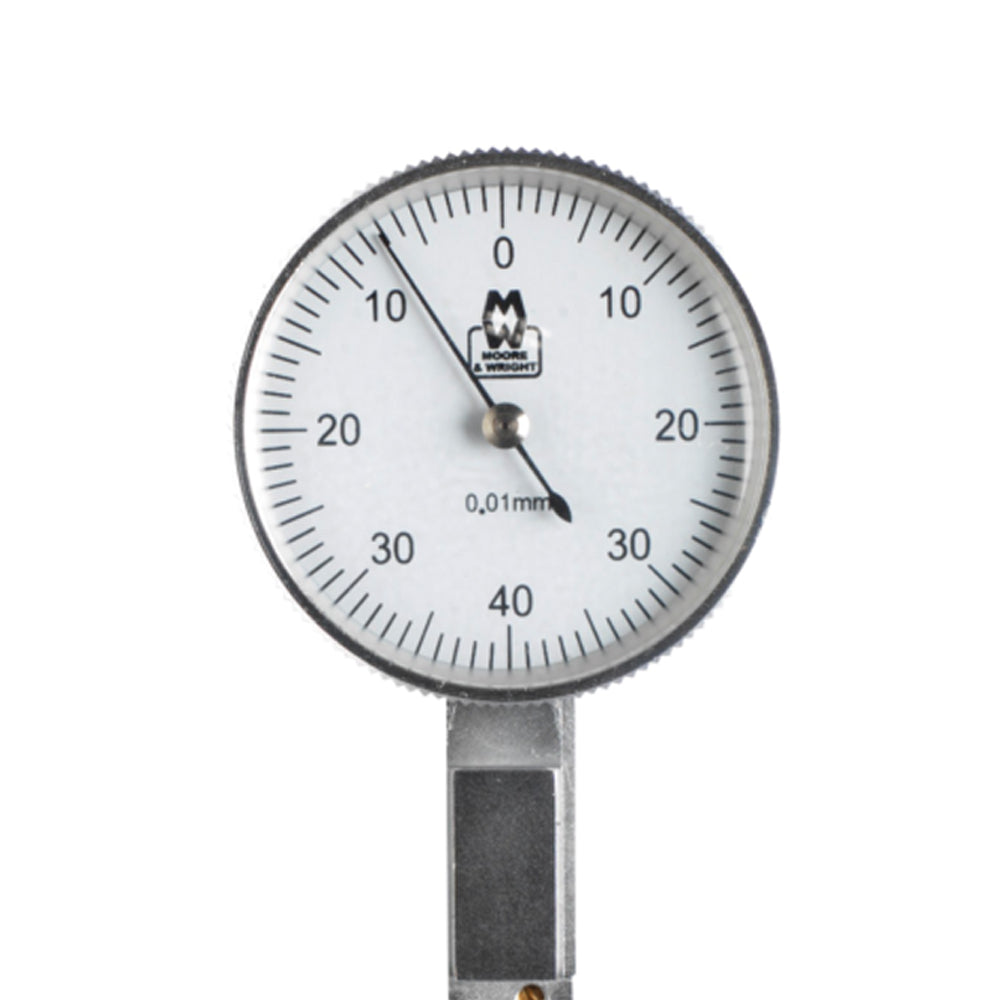

Featuring high precision fully jewelled bearings and automatic reversal of measuring direction, the indicator provides smooth and accurate operation regardless of probe orientation. The rotating dial and dual dovetail clamps offer flexible mounting and easy readability during setup and measurement tasks.
Each indicator is fitted with a carbide contact point and a 12mm (1/2") stylus with M1.4 thread, making the 420 Series suitable for a wide range of inspection and alignment applications. Available in both metric and imperial formats, the range provides solutions for users working to either measurement system.
| Product Code | Measurement System | Range | Graduation | Dial Reading | Dial Diameter |
|---|---|---|---|---|---|
| MW420-03 | Metric | 0.8mm | 0.01mm | 0-40-0 | 25mm |
| MW420-04 | Metric | 0.8mm | 0.01mm | 0-40-0 | 37mm |
| MW420-03I | Imperial | 0.030" | 0.0005" | 0-15-0 | 1" |
| MW420-04I | Imperial | 0.030" | 0.0005" | 0-15-0 | 1.5" |
| Specification | Details |
|---|---|
| Product Type | Dial Test Indicator |
| Series | 420 Series |
| Standards | ANSI B89.1.10 & DIN 2270 |
| Bearings | High Precision Fully Jewelled Bearings |
| Direction Reversal | Automatic |
| Dial Type | Rotating Dial |
| Mounting | Two Dovetail Clamps |
| Contact Point | Carbide Point |
| Stylus Length | 12mm / 1/2" |
| Thread Size | M1.4 |
| Applications | Alignment, Runout Measurement, Comparative Gauging & Precision Inspection |
The Moore & Wright 420 Series Dial Test Indicators combine precision engineering, jewelled bearing construction and flexible mounting options to provide accurate and repeatable measurement performance. Suitable for workshop inspection, machine setup and quality control applications, the range offers both metric and imperial options to suit a wide variety of engineering requirements.
