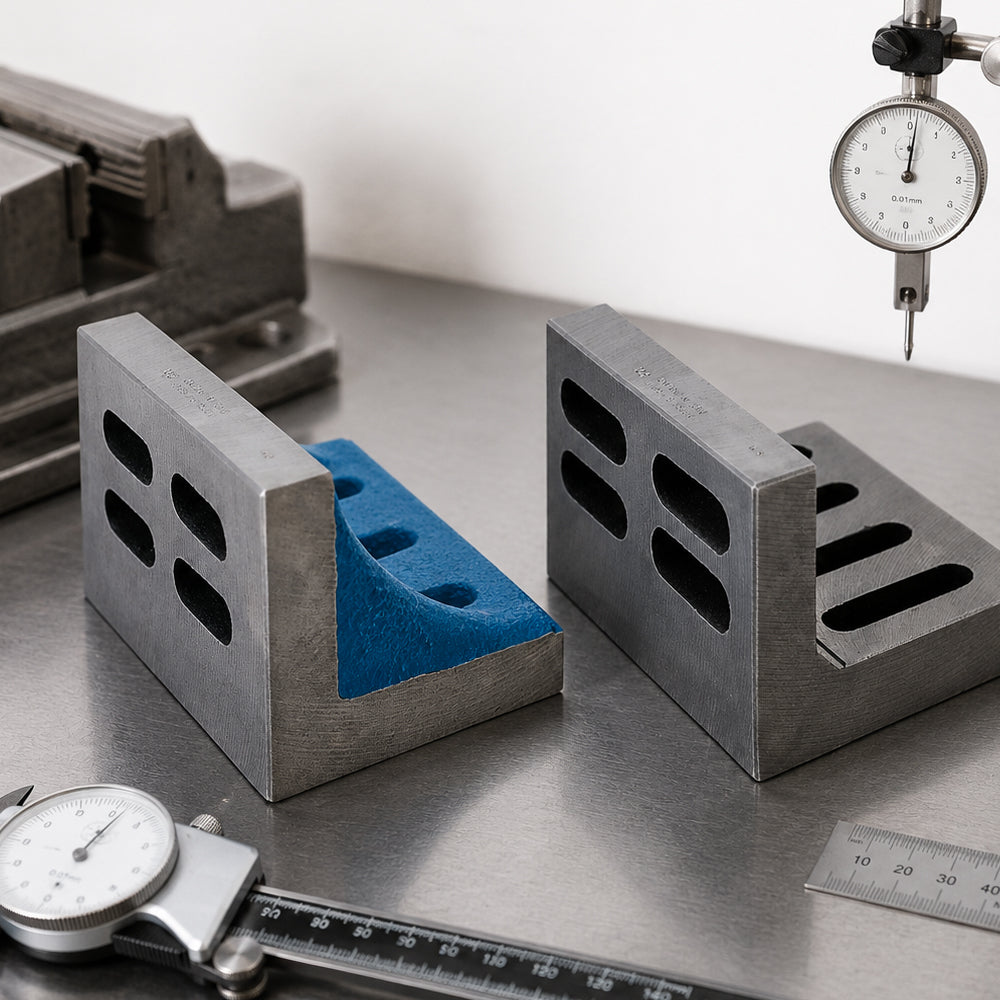

The Moore & Wright Traditional Angle Plates are precision-engineered workshop accessories designed for securely supporting and positioning workpieces at right angles during machining, marking out and inspection applications. Available in Webbed and Open End designs, these angle plates provide a stable reference surface for engineering, manufacturing and workshop operations where accurate positioning and alignment are essential.

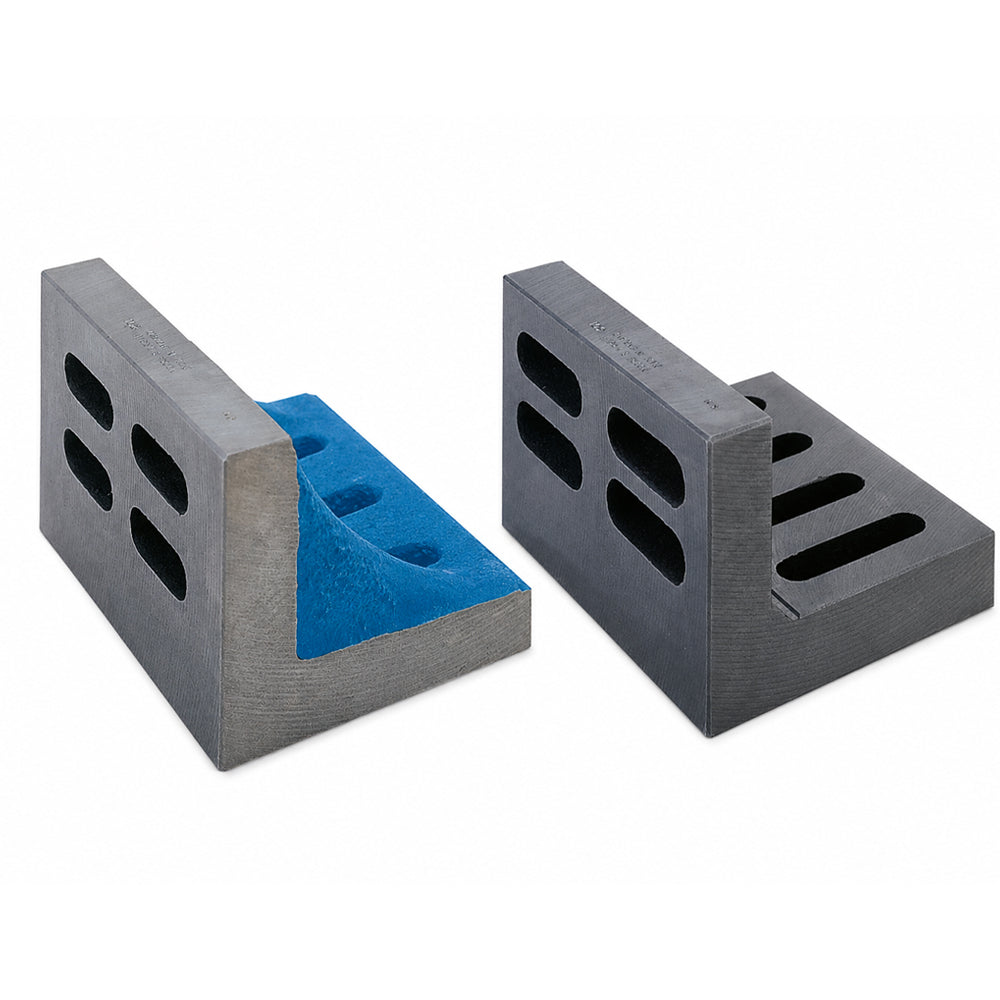

The Webbed Angle Plates feature a reinforced construction designed to provide additional rigidity and support, making them suitable for general machining, workholding and inspection tasks. The Open End Angle Plates offer a more accessible design, allowing improved access to workpieces during setup and machining operations. Both designs provide practical solutions for supporting components at 90-degree angles.
Available in six models with lengths ranging from 125mm to 200mm, the Moore & Wright Traditional Angle Plates offer a choice of sizes and configurations to suit different workpiece dimensions and workshop requirements. Their traditional engineering design makes them suitable for use in machine shops, toolrooms, inspection departments and general manufacturing environments.
| Product Code | Type | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|
| E201 | Webbed | 131 | 86 | 106 |
| E202 | Webbed | 160 | 100 | 125 |
| E204 | Webbed | 200 | 125 | 160 |
| E301 | Open End | 125 | 80 | 100 |
| E302 | Open End | 160 | 100 | 125 |
| E304 | Open End | 200 | 125 | 160 |
| Specification | Details |
|---|---|
| Brand | Moore & Wright |
| Product Type | Traditional Angle Plate |
| Available Designs | Webbed & Open End |
| Available Models | E201, E202, E204, E301, E302 & E304 |
| Length Range | 125–200mm |
| Width Range | 80–125mm |
| Height Range | 100–160mm |
| Nominal Angle | 90° |
| Design Features | Webbed Reinforced Construction or Open End Configuration |
| Primary Functions | Workpiece Support, Right-Angle Positioning, Alignment & Workholding |
| Typical Applications | Machining, Marking Out, Toolmaking, Component Inspection & General Workshop Use |
The Moore & Wright Traditional Angle Plates provide a practical solution for supporting and positioning workpieces during precision engineering and workshop operations. With a choice of Webbed and Open End designs and six available models, they offer flexibility for a wide range of machining, alignment and inspection requirements.
