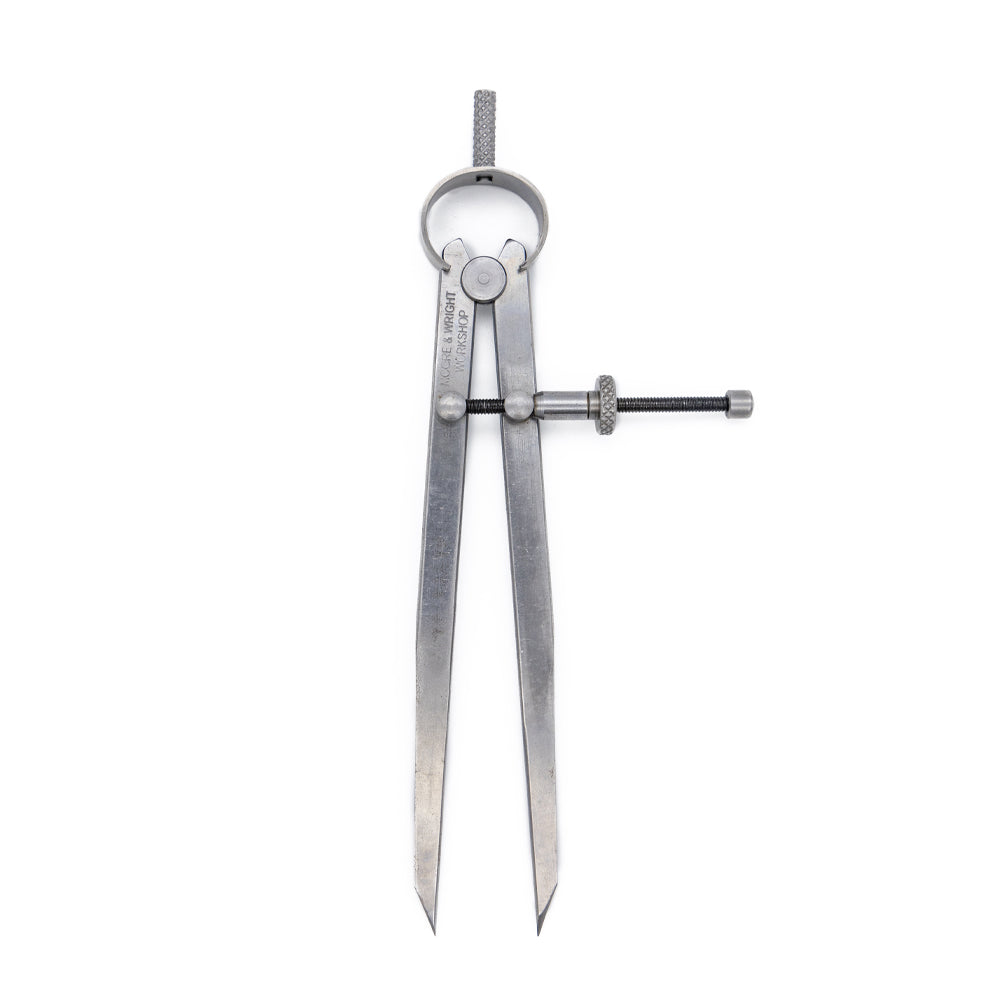

The Moore & Wright Traditional Spring Joint Dividers are precision marking and layout instruments designed for transferring measurements, marking arcs and circles, and setting out dimensions during engineering, machining and workshop applications. Manufactured from polished tool steel, these traditional spring dividers provide a practical solution for engineers, machinists and toolmakers requiring controlled adjustment and accurate marking.
Featuring hardened steel points with a hardness exceeding 550Hv, the Moore & Wright Spring Joint Dividers are designed for durability during regular marking and layout operations. The bow spring provides uniform tension throughout the working range, whilst the centrally mounted adjustment screw allows finer setting than traditional firm joint dividers, helping users achieve controlled positioning of the divider legs.
Available in six sizes ranging from 75mm (3 inches) to 300mm (12 inches), these spring joint dividers offer a choice of instrument sizes to suit different workshop requirements. Their polished tool steel construction, hardened points and fine adjustment mechanism make them suitable for precision layout, marking out and dimensional transfer tasks.
| Product Code | Description | Size (mm) | Size (inch) |
|---|---|---|---|
| 503R | Spring Divider | 75 | 3" |
| 504R | Spring Divider | 100 | 4" |
| 506R | Spring Divider | 150 | 6" |
| 508R | Spring Divider | 200 | 8" |
| 5010R | Spring Divider | 250 | 10" |
| 5012R | Spring Divider | 300 | 12" |
| Specification | Details |
|---|---|
| Brand | Moore & Wright |
| Product Type | Traditional Spring Joint Divider |
| Available Sizes | 75mm, 100mm, 150mm, 200mm, 250mm & 300mm |
| Imperial Sizes | 3", 4", 6", 8", 10" & 12" |
| Material | Tool Steel |
| Finish | Polished |
| Point Hardness | Over 550Hv |
| Joint Type | Spring Joint |
| Spring Mechanism | Bow Spring |
| Adjustment Mechanism | Centrally Mounted Adjustment Screw |
| Adjustment Features | Fine Setting with Uniform Spring Tension |
| Primary Functions | Marking Arcs & Circles, Measurement Transfer & Precision Layout |
| Typical Applications | Engineering, Machining, Toolmaking, Marking Out & General Workshop Use |
The Moore & Wright Traditional Spring Joint Dividers combine polished tool steel construction, hardened measuring points and a centrally mounted fine adjustment screw to provide a reliable solution for precision marking and layout. With six available sizes from 75mm to 300mm, they offer practical versatility for engineers, machinists and toolmakers undertaking workshop measurement and marking operations.
