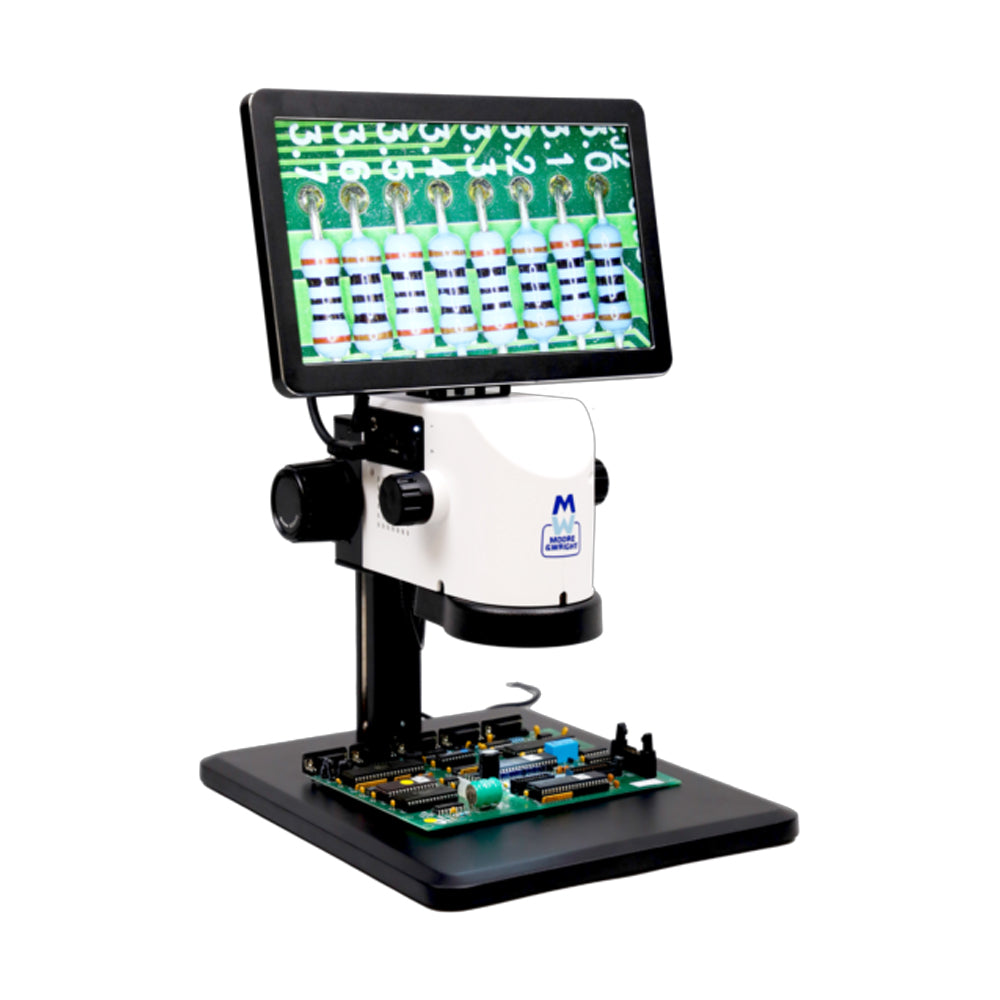

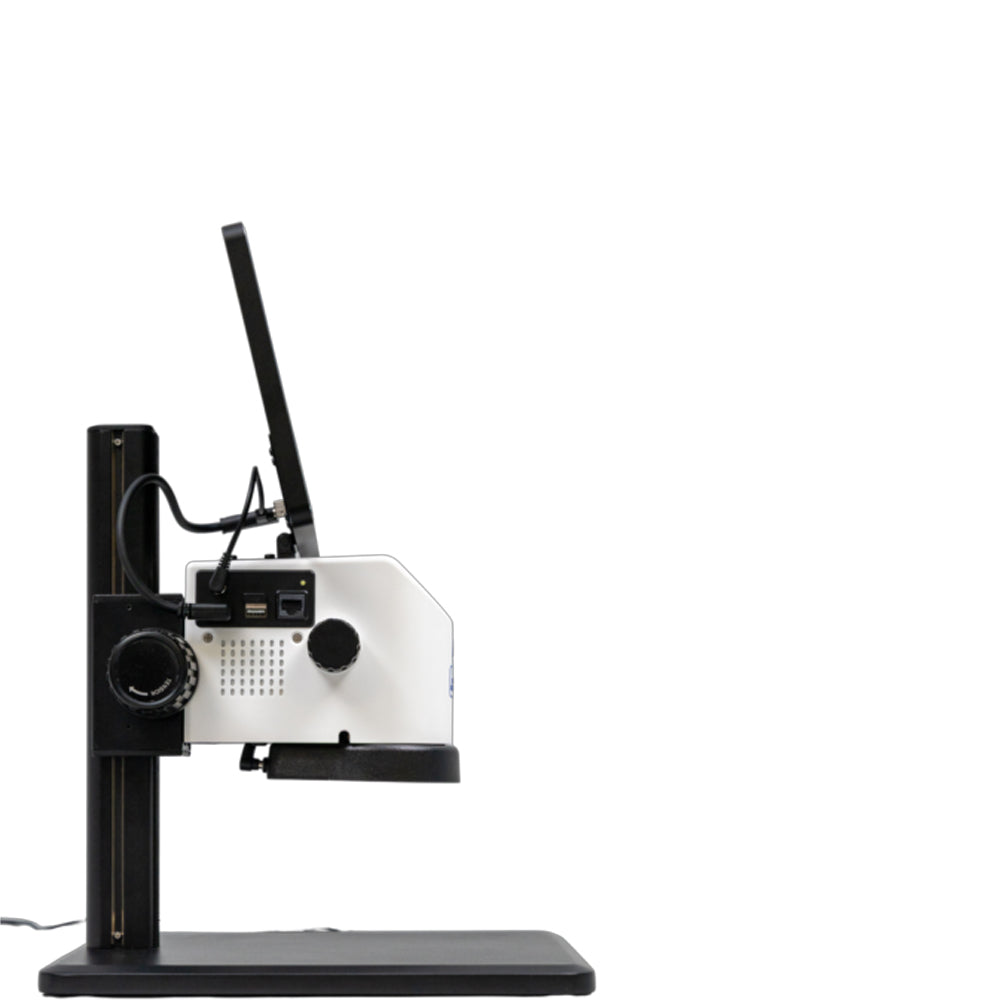

The Moore & Wright MWT-7100 Video Microscope is a powerful inspection system designed for precision measurement, image capture and detailed visual examination. Combining high-quality optics with an integrated 2-megapixel camera and large 11.6" LCD display, it delivers clear, real-time imaging for quality control, manufacturing, electronics, laboratories and engineering applications.
Offering continuous magnification from 12X to 84X, the MWT-7100 enables detailed inspection of features as small as 2mm. The integrated display operates at 60fps, providing smooth live viewing with virtually no image lag, making it ideal for production environments and precision inspection tasks.
Integrated measurement software allows users to overlay lines, circles, angles and other shapes directly onto captured images. Automatic edge detection simplifies accurate measurement, while internal memory and USB/network connectivity make it easy to save, export and document inspection results.
The microscope features adjustable LED illumination, automatic exposure and white balance, along with manual controls for brightness, focus and magnification, ensuring optimum image quality across a wide range of applications.
| Product Code | Description | Magnification | Camera Resolution |
|---|---|---|---|
| MWT-7100 | Video Microscope | 12X–84X | 1920 × 1080P (2MP) @ 60fps |
Optional Accessories
Expand the capabilities of your MWT-7100 Video Microscope with the optional 3D Viewing Attachment (sold separately). The attachment provides a 45° viewing angle with 360° rotation, allowing angled inspection of complex components and features that cannot easily be viewed from directly above. Ideal for detailed examination of machined parts, electronics, solder joints and other three-dimensional components. Click To Add
| Specification | Details |
|---|---|
| Product Type | Digital Video Microscope |
| Product Code | MWT-7100 |
| Magnification | 12X–84X Continuous Zoom |
| Objective Zoom Ratio | 6.4:1 (0.75X–4.5X) |
| Sensor | 1/2" CMOS |
| Camera Resolution | 1920 × 1080P (2 Megapixel) @ 60fps |

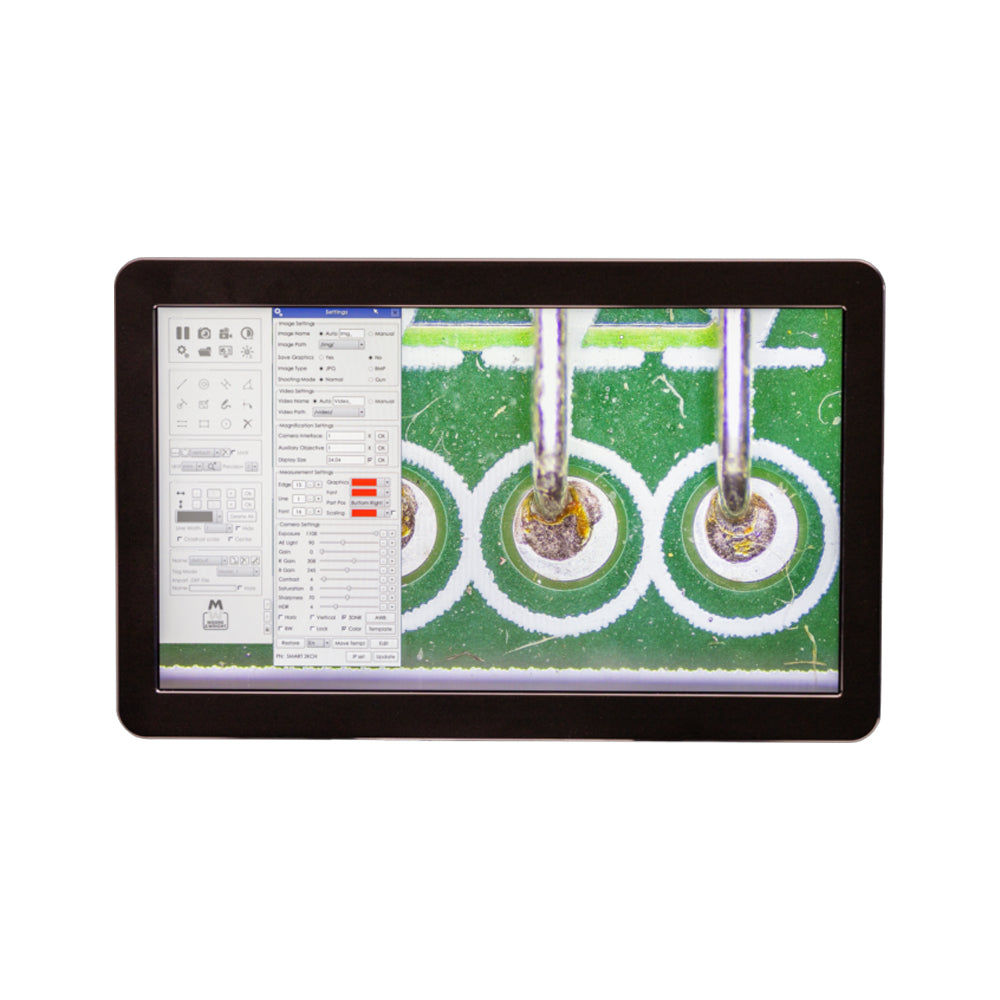

| Display | 11.6" Built-in LCD Monitor |
| Image Functions | Photo Capture & Video Recording |
| Measurement Tools | Distance, Area & Angle Measurement with Automatic Edge Detection |
| Lighting | Adjustable LED Ring Light with Brightness Control |
| Image Adjustment | Automatic Exposure, White Balance, Gain, Contrast & Saturation Control |
| Outputs | HDMI, USB & Ethernet |
| Power Supply | 100–240V AC, 50/60Hz (12V Output) |
| Applications | Precision Inspection, Electronics, Manufacturing, Quality Control, Laboratories & Engineering |
The Moore & Wright MWT-7100 Video Microscope combines high-definition imaging, powerful continuous magnification and integrated measurement capabilities into a professional inspection solution. With photo and video capture, advanced measurement tools and multiple connectivity options, it is ideal for quality assurance, manufacturing and detailed engineering inspection.
